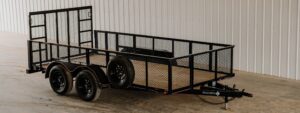

SULS Landscape Utility
The Landscape Standard Utility Trailer from Diamond T is leading the industry with its design and functionality available as a Bumper Pull trailer.
Performance while pulling empty and with a load are reasons that make our SULS an industry leader which include the following standard features:
- Rock Guard on Fenders
- Wrap Around Tongue
- 2″ x 8″ Pressure Treated Floor
- Wiring Sealed in Frame
- 4 D-rings Inside Trailer
- Tubing Tail Board w/ Sealed LED’s
- 100% Prime and Paint
- 2 Line Pinstriping
- 24″ or 48″ Expanded Metal Sides
Specifications
- Coupler: 2″ Bulldog Style Cast
- Jacks: 2000# Swivel
- Safety Chains: 1/4″x31″
- Tongue: 4″ Channel
- Frame: 3″x2″x3/16″ Angle
- Toprail: 2″x2″x1/8″ Angle
- Uprights: 2″x2″x1/8″ Angle
- Cross Members: 3″x2″x3/16″ Angle
- Axle: 1-3500# Idler, 1-3500# Brake w/ EZ Lube
- Suspension: 4 Leaf Double Eye
- Tires: ST 205/15 Load Range C Radial
- Wheels: 15″ 5 on 5″ Silver Mod
- Fenders: 9″x72″ Teardrop w/Radius Cut Back
- Body: 24″ or 48″ Expanded Metal Sides
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 7714SULS24 | 77″ W x 14′ L Landscape Standard Utility |
| 7716SULS24 | 77″ W x 16′ L Landscape Standard Utility |
| 7718SULS24 | 77″ W x 18′ L Landscape Standard Utility |
| 7720SULS24 | 77″ W x 20′ L Landscape Standard Utility |
| 8314SULS24 | 83″ W x 14′ L Landscape Standard Utility |
| 8316SULS24 | 83″ W x 16′ L Landscape Standard Utility |
| 8318SULS24 | 83″ W x 18′ L Landscape Standard Utility |
| 8320SULS24 | 83″ W x 20′ L Landscape Standard Utility |
Options
AXLES
| 235BK | Two 3500# Electric Brake Axles |
RAMPS / DOVETAIL
| RGSA | Rear Gate Spring Assist |
GATES
| 77RG | 77″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 83RG | 83″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| SPTG | 77″ or 83″ Split Rear Tractor Gate with Spring Assist |
JACKS
| 7KSB | 7000# Set Back Mini Dropleg Jack |
COUPLER
| 12BDU | 2 5/16″ Bulldog Style Coupler |
| ADCP | 5 Position Channel with 2 5/16″ 15k Adjustable Coupler |
SPARE TIRE / WHEEL
| 2055H | ST 205/15 LRC w/5 on 5″ Silver Mod Spare Tire & Wheel |
| 2255H | ST 225/15 LRD w/5 on 5″ Silver Mod Spare Tire & Wheel |
UPGRADE TIRE/WHEEL
| 225STU | Upgrade to ST 225/15 LRD w/5 on 5″ Silver Mod Wheels |
ADDITIONAL OPTIONS
| PLSB | 24″ x 24″ Landscape Basket (Bolt-on) |
| BILSB | 24″ x 24″ Landscape Basket Built-in 4′ Exp. Met. Side Trailer |
| 3WER | Weedeater Racks pr. (Welded-on 1 pr. Holds 3) |
| 3WERB | Weedeater Racks pr. (Bolt-on 1 pr. Holds 3) |
| STR | Spare Tire Rack |
| RDPF | 9″ x 72″ Teardrop 14g. Diamond Plate Fenders |
| SUPT | 2 3/8″ 11 gauge Pipe Toprail |
| SUST | 2″ 11 gauge Square Tube Toprail |
| FRLT | Front and Rear Fender Lights |
