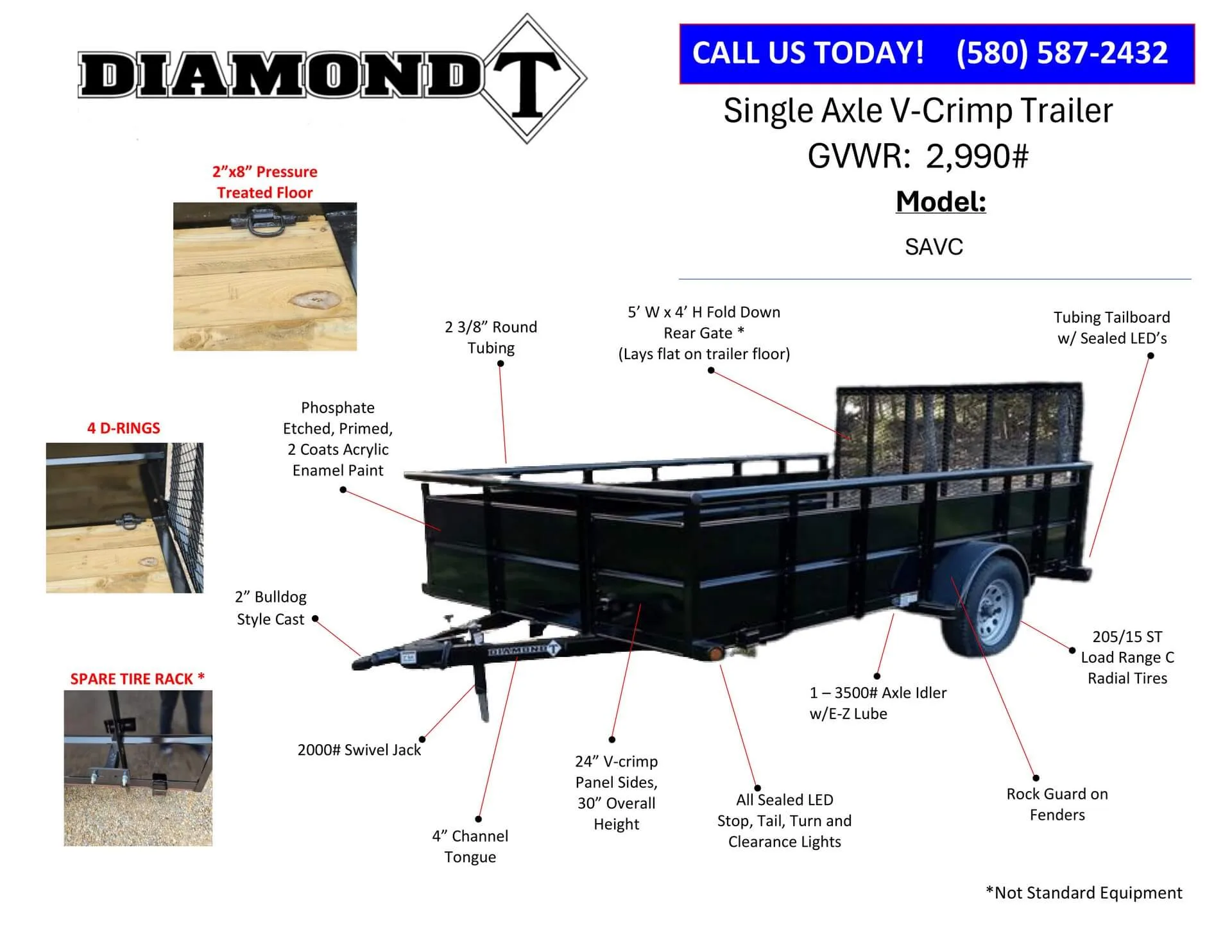

V-Crimp Single Axle SAVC
The V-Crimp Single Axle Utility Trailer from Diamond T is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our SAVC an industry leader which includes the following standard features:
- Rock Guard on Fenders
- Tubing Tail Board w/ Sealed LED’s
- 2″ x 8″ Pressure Treated Floor
- Wiring Sealed in Frame
- 4 D-rings Inside Trailer
- 2 3/8″ Round Tubing
- 100% Prime and Paint
- 2 Line Pinstriping
- 24″ V-crimp Panel Sides 30″ Overall Height
Specifications
- Coupler: 2″ Bulldog Style Cast
- Jacks: 2000# Swivel
- Safety Chains: 1/4″x31″
- Tongue: 4″ Channel
- Frame: 3″x2″x3/16″ Angle
- Toprail: 2″x2″x1/8″ Angle
- Uprights: 2″x2″x1/8″ Angle
- Cross Members: 3″x2″x3/16″ Angle
- Axle: 3500# Idler w/ EZ Lube
- Suspension: 4 Leaf Double Eye
- Tires: ST 205/15 Load Range C Radial
- Wheels: 15″ 5 on 5″ Silver Mod
- Fenders: 9″x32″ w/ Radius Cut Back
- Body: 24″ V-crimp Panel Sides 30″ Overall Height
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 508SAVC | 5′ W x 8′ L Single Axle Utlity V-Crimp |
| 510SAVC | 5′ W x 10′ L Single Axle Utlity V-Crimp |
| 512SAVC | 5′ W x 12′ L Single Axle Utlity V-Crimp |
| 7710SAVC | 77″ W x 10′ L Single Axle Utlity V-Crimp |
| 7712SAVC | 77″ W x 12′ L Single Axle Utlity V-Crimp |
| 7714SAVC | 77″ W x 14′ L Single Axle Utlity V-Crimp |
| 8310SAVC | 83″ W x 10′ L Single Axle Utlity V-Crimp |
| 8312SAVC | 83″ W x 12′ L Single Axle Utlity V-Crimp |
| 8314SAVC | 83″ W x 14′ L Single Axle Utlity V-Crimp |
Options
AXLES
| 135BK | 3500# Brake Axle w/Breakaway Kit (3500# GVWR) |
| 152l | 1 – 5200# Electric Axle w/225/15 LRD w/6 on 5 1/2″ Silver Mod Tire and Wheel (5000# GVWR 2990# GAWR) |
RAMPS / DOVETAIL
| RGSA | Rear Gate Spring Assist |
GATES
| 5RG | 5′ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 77RG | 77″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 83RG | 83″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
SPARE TIRE / WHEEL
| 2055H | ST 205/15 LRC w/5 on 5″ Silver Mod Spare Tire & Wheel |
| 2256H | ST 225/15 LRD w/6 on 5 1/2″ Silver Mod Spare Tire & Wheel |
ADDITIONAL OPTIONS
| PLSB | 24″ x 24″ Landscape Basket (Bolt-on) |
| 3WERB | Weedeater Racks pr. (Bolt-on 1 pr. Holds 3) |
| STR | Spare Tire Rack |
| WRT | Wrap Tongue on 512 and Larger |
| HSST | 2″ 11 gauge Square Tube Toprail |
