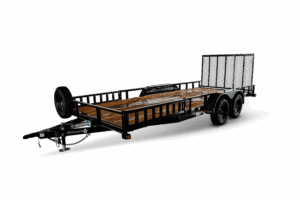

SUCHATV104 Channel Frame
The ATV Standard Utility Channel Frame functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our SUCHATV104 an industry leader which include the following standard features:
- Rock Guard on Fenders
- Tubing Tail Board w/ Sealed LED’s
- Wrap Around Tongue
- Wiring Sealed in Frame
- Snap Lock Anchor Brackets
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint
- 2 Line Pinstriping
- Ramp Lip w/ Board Holder
- 5’ ATV Ramps in Side Rail
- Reflective Tape
Specifications
- Coupler: 2 5/16” Bulldog Style Cast
- Jacks: 2000# Swivel
- Safety Chains: 1/4″x31″
- Tongue: 4″ Channel
- Frame: 4” Channel
- Toprail: 2”x2”x1/8” Angle
- Uprights: 2″x2″x1/8″ Angle
- Cross Members: 3”x2”x3/16” Angle 24” Spacing
- Axles: 1-5200# Idler, 1-5200# Brake w/ EZ Lube
- Suspension: 5 Leaf Double Eye
- Tires: ST 225/15 Load Range D Radial
- Wheels: 15” 6 on 5 1/2” Silver Mod
- Fenders: 9”x72” Teardrop w/ Radius Cut Back
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 8314SUCHATV104 | 83” W x 14’ L Standard Utility Channel Frame ATV 104 |
| 8316SUCHATV104 | 83” W x 16’ L Standard Utility Channel Frame ATV 104 |
| 8318SUCHATV104 | 83” W x 18’ L Standard Utility Channel Frame ATV 104 |
| 8320SUCHATV104 |
83” W x 20’ L Standard Utility Channel Frame ATV 104 |
| 8322SUCHATV104 | 83” W x 22’ L Standard Utility Channel Frame ATV 104 |
| 8324SUCHATV104 | 83” W x 24’ L Standard Utility Channel Frame ATV 104 |
Options
AXLES
|
252BK |
Two 5200# Electric Brake Axles |
RAMPS / DOVETAIL
| RGSA | Rear Gate Spring Assist |
| UFDT | 2’ Dovetail |
| 2X2RR | 5’ Long 2’ x 2” Ramps w/Slide-in Ramp Rack |
GATES
| 83RG | 83″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| SPTG | 77″ or 83″ Split Rear Tractor Gate with Spring Assist |
| 3TRG | Modify any rear gate to 3’ tall |
JACKS
| 7KSB | 7000# Set Back Mini Dropleg Jack |
COUPLER
| ADCP | 5 Position Channel with 2 5/16” 15k Adjustable Coupler |
SPARE TIRE / WHEEL
| 2256H | ST 225/15 LRD w/6 on 5 1/2” Silver Mod Spare Tire & Wheel |
ADDITIONAL OPTIONS
| RDPF | 9″ x 72″ Teardrop 14g. Diamond Plate Fenders |
| STR | Spare Tire Rack |
| SUPT | 2 3/8” 11 gauge Pipe Toprail |
| SUST | 2” 11 gauge Square Tube Toprail |
| SLKRR | Snap Lock Rope Ring Anchors Each |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8” X 3” D-Rings, Each Installed |
