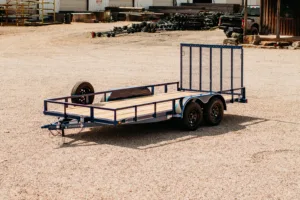

Standard Utility SUCH
The Channel Frame Standard Utility Trailer is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our SUCH an industry leader which includes the following standard features:

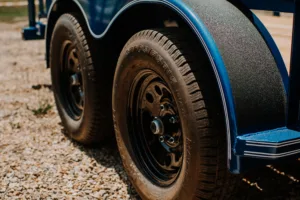

- Rock Guard on Fenders
- Tubing Tail Board w/ Sealed LED’s
- Wrap Around Tongue
- Wiring Sealed in Frame
- Snap Lock Anchor Brackets
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint
- 2 Line Pinstriping

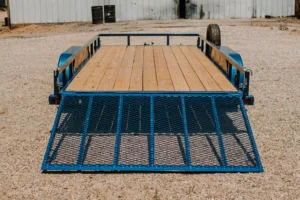

- Ramp Lip w/ Board Holder
Specifications

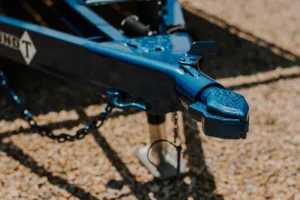

Coupler: 2″ Bulldog Style Cast
Jacks: 2000# Swivel
Safety Chains: 1/4″x31″
Tongue: 4″ Channel
Frame: 4″ Channel
Toprail: 2″x2″x1/8″ Angle
Uprights: 2″x2″x1/8″ Angle
Cross Members: 3″x2″x3/16″ Angle
Axles: 1-3500# Idler, 1-3500# Brake w/ EZ Lube
Suspension: 4 Leaf Double Eye
Tires: ST 205/15 Load Range C Radial
Wheels: 15″ 5 on 5″ Silver Mod
Fenders: 9″x72″ Teardrop w/ Radius Cut Back
Flooring: 2×8 Pressure Treated Pine
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 8312SUCH | 83″ W x 12′ L Standard Utility Channel Frame |
| 8314SUCH | 83″ W x 14′ L Standard Utility Channel Frame |
| 8316SUCH | 83″ W x 16′ L Standard Utility Channel Frame |
| 8318SUCH | 83″ W x 18′ L Standard Utility Channel Frame |
| 8320SUCH | 83″ W x 20′ L Standard Utility Channel Frame |
| 8322SUCH | 83″ W x 22′ L Standard Utility Channel Frame |
| 8324SUCH | 83″ W x 24′ L Standard Utility Channel Frame |
Options
AXLES
| 235BK | Two 3500# Electric Brake Axles |
RAMPS / DOVETAIL
| RGSA | Rear Gate Spring Assist |
| UFDT | 2′ Dovetail |
| 2X2RR | 5′ Long 2′ x 2″ Ramps w/Slide-in Ramp Rack |
GATES

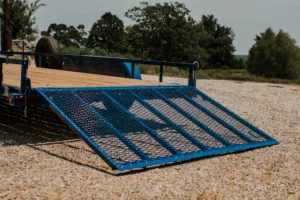

| 83RG | 83″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| SPTG | 77″ or 83″ Split Rear Tractor Gate with Spring Assist |
| 3TRG | Modify any rear gate to 3′ tall |
| 5TSG | 5′ Wide Side Gate 3′ tall |
JACKS
| 7KSB | 7000# Set Back Mini Dropleg Jack |
COUPLER
| 12BDU | 2 5/16″ Bulldog Style Coupler |
| ADCP | 5 Position Channel with 2 5/16″ 15k Adjustable Coupler |
SPARE TIRE / WHEEL
| 2055H | ST 205/15 LRC w/5 on 5″ Silver Mod Spare Tire & Wheel |
| 2255H | ST 225/15 LRD w/5 on 5″ Silver Mod Spare Tire & Wheel |
UPGRADE TIRE / WHEEL
| 225STU | Upgrade to ST 225/15 LRD w/5 on 5″ Silver Mod Wheels |
ADDITIONAL OPTIONS
| RDPF | 9″ x 72″ Teardrop 14g. Diamond Plate Fenders |
| STR | Spare Tire Rack |
| SURS2 | 24″ Open Raised Sides and Front |
| SURS4 | 48″ Open Raised Sides and Front |
| SUPT | 2 3/8″ 11 gauge Pipe Toprail |
| SUST | 2″ 11 gauge Square Tube Toprail |
| SLKRR | Snap Lock Rope Ring Anchors Each |
