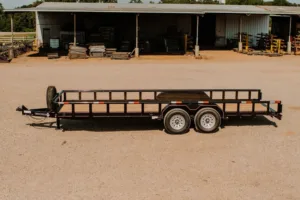

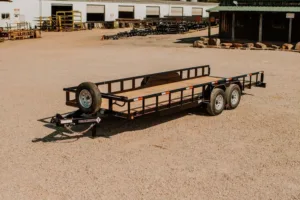

Super Duty Utility SD104
The Diamond T Super Duty Utility Trailer is leading the industry with its design and functionality available in Bumper Pull. Performance while pulling empty and with a load are reasons that make our SDU104 an industry leader which includes the following standard features:
- Wrap Tongue
- 6 Tie Downs on Frame
- Tubing Tail Board w/ Sealed LED’s
- Chain Tray
- Wiring Sealed in Frame
- 12k Jack w/ Spring Loaded Foot
- DP Fenders w/ Teardrop
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint

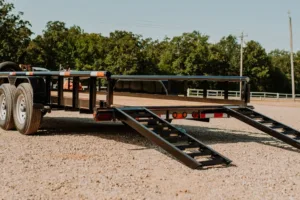

- 5′ Long 3″ Channel Slide-in Ramps
- 3″ Pipe Toprail
- Spare Tire Rack
Specifications
Coupler: 25/16″ Bulldog Style
Jacks: 12000# Dropleg
Safety Chains: 3/8″x39″ w/Sliphook
Tongue: 5″ Channel
Frame: 5″x3″x1/4″ Angle
Toprail: 3″ Round Tubing
Front Uprights: 3″x2″x3/16″ Angle
Cross Members: 3″ Channel 24″ Spacing

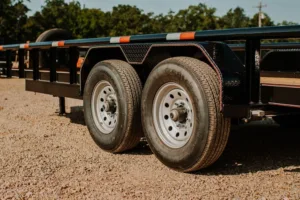

Axles: 2-5200# Brake w/ EZ Lube
Suspension: 5 Leaf Double Eye
Tires: 235/16 ST Load Range E Radial
Wheels: 16″ 6 on 5 1/2″ Silver Mod
Fenders: 9″x72″ DP Dbl. Sq. Broke w/Back
Flooring: 2×8 Pressure Treated Pine
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 8314SDU104 | 83″ W x 14′ L Super Duty Utility 104 |
| 8316SDU104 | 83″ W x 16′ L Super Duty Utility 104 |
| 8318SDU104 | 83″ W x 18′ L Super Duty Utility 104 |
| 8320SDU104 | 83″ W x 20′ L Super Duty Utility 104 |
| 8322SDU104 | 83″ W x 22′ L Super Duty Utility 104 |
| 8324SDU104 | 83″ W x 24′ L Super Duty Utility 104 |
Options
RAMPS / DOVETAIL
| SAKR | Spring Assist For Knee Ramps |
| KREX | 5′ Long 3″ Channel Knee Ramps |
GATES
| SDUTG | 83″ Split Rear Tractor Gate with Spring Assist |
COUPLER
| ADCP | 5 Position Channel with 2 5/16″ 15k Adjustable Coupler |
| ADPE | 5 Position Channel with 3″ Pintle Eye |
SPARE TIRE / WHEEL
| 2356H | 235/16 LRE w/6 on 5 1/2″ Silver Mod Spare Tire and Wheel |
FLOORING
| LBOF | Oak Floor up to 20′ Bed Length |
| LBEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF | DP Steel Floor up to 20′ Bed Length |
| DPEF | DP Steel Floor for each 2′ of Bed Length over 20′ |
TOOL BOX
| LBNBAF | A-Frame Box in Bumper Pull |
SUSPENSION
| 5LFSL | 5 Leaf Slipper Spring Suspension |
ADDITIONAL OPTIONS
| SDURS2 | 24″ Open Raised Sides and Front |
| SDURS4 | 48″ Open Raised Sides and Front |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
| SDUST | 3″ 11 gauge Square Tube Toprail |
