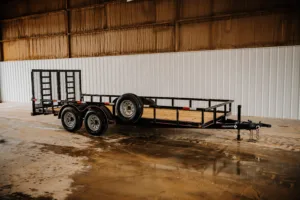

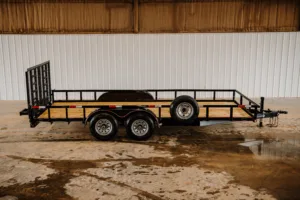

Heavy Utility HU104
The Diamond T Heavy Duty Utility Trailer is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our HU104 an industry leader which includes the following standard features:
- Wrap Around Tongue
- 6 Tie Downs on Frame
- Tubing Tail Board w/ Sealed LED’s
- Reflective Tape
- Wiring Sealed in Frame
- 7k Setback Dropleg Jack
- Rock Guard on Fenders
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint

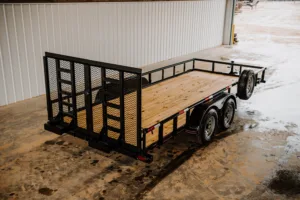

- 5′ Long 2″x2″x1/4″ Angle Ramps w/ Rear Rack
- 2 3/8″ Pipe Toprail
- Bulldog Style Coupler
Specifications

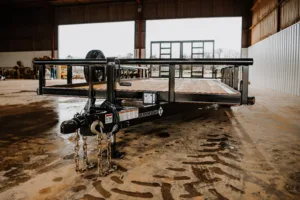

Coupler: 2 5/16″ Bulldog Style Jacks: 7000# Dropleg
Safety Chains: 3/8″x39″ w/Sliphook
Tongue: 5″ Channel
Frame: 4″x3″x1/4″ Angle
Toprail: 2 3/8″ Round Tubing
Uprights: 2″x2″x3/16″ Angle
Cross Members: 3″x2″x3/16″ Angle

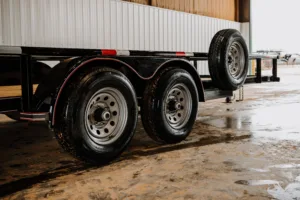

Axles: 1-5200# Idler, 1-5200# Brake w/ EZ Lube
Suspension: 5 Leaf Double Eye
Tires: 225/15 Load Range D Radial
Wheels: 15″ 6 on 5 1/2″ Silver Mod
Fenders: 9″x72″ Teardrop w/ Radius Cut Back 2×8 Pressure Treated Pine
Flooring: All Sealed LED Stop, Tail, Turn and
Lights: Clearance Phosphate etched, primed, 2 coats
Finish: Acrylic enamel
Models
| 8314HU104 | 83″ W x 14′ L Heavy Utility 104 |
| 8316HU104 | 83″ W x 16′ L Heavy Utility 104 |
| 8318HU104 | 83″ W x 18′ L Heavy Utility 104 |
| 8320HU104 | 83″ W x 20′ L Heavy Utility 104 |
| 8322HU104 | 83″ W x 22′ L Heavy Utility 104 |
| 8324HU104 | 83″ W x 24′ L Heavy Utility 104 |
Options
AXLE
| 252BK | Two 5200# Electric Brake Axles |
GATES
| SDUTG | 83″ Split Rear Tractor Gate with Spring Assist |
COUPLER
| ADCP | 5 Position Channel with 2 5/16″ 15k Adjustable Coupler |
SPARE TIRE / WHEEL
| 2256H | ST 225/15 LRD w/6 on 5 1/2″ Silver Mod Spare Tire & Wheel |
ADDITIONAL OPTIONS
| RDPF | 9″ x 72″ Teardrop 14g. Diamond Plate Fenders |
| STR | Spare Tire Rack |
| HURS2 | 24″ Open Raised Sides and Front |
| HURS4 | 48″ Open Raised Sides and Front |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
| HUST | 2″ 11 gauge Square Tube Toprail |
| SLKRR | Snap Lock Rope Ring Anchors Each |
