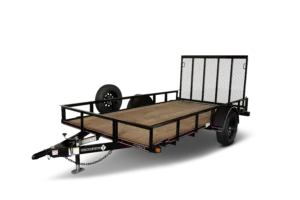

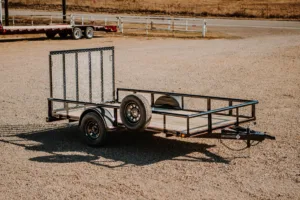

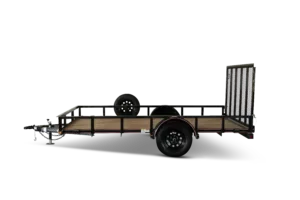

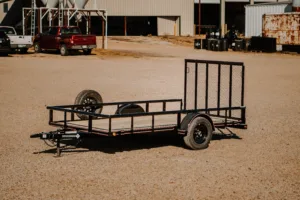

Single Axle SAS
The Diamond T Single Axle Utility Trailer is leading the industry with its design and functionality available as a Bumper Pull trailer. Performance while pulling empty and with a load are reasons that make our SAS an industry leader which includes the following standard features:
- Rock Guard on Fenders
- Tubing Tail Board w/ Sealed LED’s
- Wiring Sealed in Frame
- Snap Lock Anchor Brackets
- 100% Prime and Paint
- 2 Line Pinstriping
Specifications
- Coupler: 2″ Bulldog Style Cast
- Jacks: 2000# Swivel
- Safety Chains: 1/4″x31″
- Tongue: 4″ Channel*
- Frame: 3″x2″x3/16″ Angle
- Toprail: 2″x2″x1/8″ Angle
- Uprights: 2″x2″x1/8″ Angle
- Cross Members: 3″x2″x3/16″ Angle
- Axle: 3500# Idler
- Suspension: 4 Leaf Double Eye
- Tires: ST 205/15 Load Range C Radial
- Wheels: 15″ 5 on 5″ Silver Mod
- Fenders: 9″x32″ w/ Radius Cut Back
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance**
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 508SAS | 5′ W x 8′ L Single Axle Utility |
| 510SAS | 5′ W x 10′ L Single Axle Utility |
| 512SAS | 5′ W x 12′ L Single Axle Utility |
| 514SAS | 5′ W x 14′ L Single Axle Utility |
| 7710SAS | 77′ W x 10′ L Single Axle Utility |
| 7712SAS | 77′ W x 12′ L Single Axle Utility |
| 7714SAS | 77′ W x 14′ L Single Axle Utility |
| 8310SAS | 83′ W x 10′ L Single Axle Utility |
| 8312SAS | 83′ W x 12′ L Single Axle Utility |
| 8314SAS | 84′ W x 14′ L Single Axle Utility |
Options
JACKS
| 135BK | 3500# Brake Axle w/Breakaway Kit (3500# GVWR) |
| 1521 | 1 – 5200# Electric Axle w/ 225/15 LRD w/6 on 5 1/2″ Silver Mod Tire and Wheel (5000# GVWR 2990# GAWR) |
RAMPS / DOVETAIL
| RGSA | Rear Gate Spring Assist |
| RLBH | Ramp Lip w/Board Holder (Trailers without Rear Gate) |
| UFDT | 2′ Dovetail |
GATES
| 5RG | 5′ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 77RG | 77″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 83RG | 83″ Wide Fold Down Rear Gate 4′ tall (Lays flat on trailer floor) |
| 3TRG | Modify any rear gate to 3′ tall |
SPARE TIRE / WHEEL
| 2055H | ST 205/15 LRC w/5 on 5″ Silver Mod Spare Tire & Wheel |
| 2256H | ST 225/15 LRD w/6 on 5 1/2″ Silver Mod Spare Tire & Wheel |
ADDITIONAL OPTIONS
| SARS2 | 24″ Open Raised Sides and Front |
| SARS4 | 48″ Open Raised Sides and Front |
| WRT | Wrap Tongue on 512 and Larger |
| SAPT | 2 3/8″ 11 gauge Pipe Toprail |
| SAST | 2″ 11 gauge Square Tube Toprail |
| SLKRR | Snap Lock Rope Ring Anchors Each |
| STR | Spare Tire Rack |
