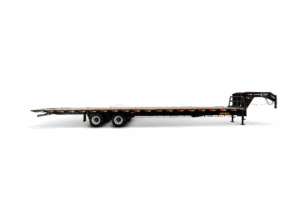

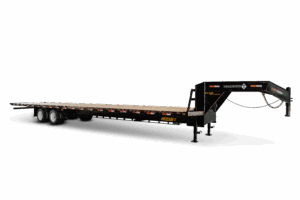

DTF DUAL TANDEM TILT DECK
The Diamond T Dual Tandem Flat Tilt Deck is leading the industry with its design and functionality. Whether you are pulling an empty trailer or a full load, the DTFTD is an industry leader and include the following Standard Features:
-
Lockable Toolbox in Neck
-
Torque Tube for Flex Control
-
Pipe Spools in Rub Rail
-
Side Marker/Turn Lights
-
See Thru Headache Rack
-
Front Steps w/ Grab Handles
-
Sealed Factory Wiring Harness
-
Low Profile PIERCED Beam Frame
-
100% Prime and Paint
-
All Sealed LED Lights
-
37″ Long Wedge DP Steel for Loading
-

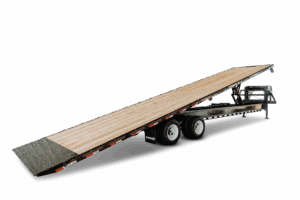

Scissor Tilt
Specifications
Coupler: 2 5/16″ Round Adj.
Jacks: 2-12000# Dropleg
Safety Chains: 3/8″x39″ w/Sliphook
Neck: 12″ WF Beam
Main Frame: 12″x19# PIERCED Beam*
Outer Frame: 5″ Channel

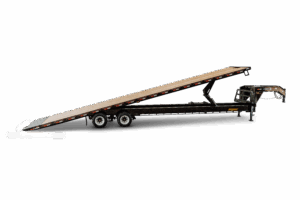

Tilt Deck: Full Power Tilt
Rubrail: 3/8″x2″ Flat w/SP 2′ OC
Cross Members: 3″ Channel 16″ Spacing
Axles: 2-10000# Dexter Oil Bath Electric Brake
Suspension: Dexter 5 Leaf Slipper
Tires: 235/16 ST Load Range E Radial
Wheels: 16″ 8 on 6 1/2″ Silver Dual
Flooring: 2×8 Pressure Treated Pine
Lights: All Sealed LED Stop, Tail, Turn and
Finish: Clearance Phosphate etched, primed, 2 coats Acrylic enamel
*10238 and 10240 have 12″x22# WF beam frame
Models
|
10224DTFTD |
102″ W x 24′ L Dual Tandem Flat Tilt Deck |
|
10225DTFTD |
102″ W x 25′ L Dual Tandem Flat Tilt Deck |
|
10226DTFTD |
102″ W x 26′ L Dual Tandem Flat Tilt Deck |
|
10228DTFTD |
102″ W x 28′ L Dual Tandem Flat Tilt Deck |
|
10230DTFTD |
102″ W x 30′ L Dual Tandem Flat Tilt Deck |
|
10232DTFTD |
102″ W x 32′ L Dual Tandem Flat Tilt Deck |
|
10234DTFTD |
102″ W x 34′ L Dual Tandem Flat Tilt Deck |
|
10235DTFTD |
102″ W x 35′ L Dual Tandem Flat Tilt Deck |
|
10236DTFTD |
102″ W x 36′ L Dual Tandem Flat Tilt Deck |
|
10238DTFTD |
102″ W x 38′ L Dual Tandem Flat Tilt Deck |
|
10240DTFTD |
102″ W x 40′ L Dual Tandem Flat Tilt Deck |
Options
AXLES
| 10KGEH |
10000# GD Electric over Hydraulic Drum Brake Axles |
| 10KHEH |
10000# HD Electric over Hydraulic Disc Brake Axles |
SUSPENSION
| DTSPD |
48 1/2″ Spread Axle Conversion |
| HDSS |
Dexter Heavy Duty Adjustable Suspension |
JACKS
| 2SPJ |
Pair of 2 Speed Dropleg Jacks |
| 2SPJBK |
Pair of 2 Speed Dropleg Jacks Binkley Style |
| 2EHJ |
Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 235ED |
235/16 LRE w/8 on 6 1/2″ Silver Dual Spare Tire and Wheel |
| 235GD |
235/16 LRG w/8 on 6 1/2″ Silver Dual Spare Tire and Wheel |
| 215HD |
215/17.5 LRH w/8 on 6 1/2″ Dual Spare Tire and Wheel |
UPGRADE TIRE/WHEEL
| 235GDU |
Upgrade to 235/16 LRG w/8 on 6 1/2″ Silver Dual Tire and Wheel |
| 215HDU |
Upgrade to 215/17.5 LRH w/8 on 6 1/2″ Dual Tire and Wheel |
FLOORING
| FDOF | Oak Floor up to 20′ Bed Length |
| FDEO |
Oak Floor for each Foot of Bed Length over 20′ |
|
DPSF-FDNP |
NOTE: Price per foot DP Steel Floor, Non-Pierced Frame |
|
DPSF-FDP |
NOTE: Price per foot DP Steel Floor, Pierced Frame |
FRAME
| FDTF |
Trussed Frame for Additional Support |
| FD22F |
12″ x 22# WF Beam Frame |
NECK
| DOGN |
102″ x 6′ Deck Over Gooseneck |
| FD22N |
12″ X 22# WF Beam Neck |
| FDRR |
Raised Riser 4″ or 6″ Neck |
TOOL BOX
| 36UBB |
15″ x 15″ x 36″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB |
15″ x 15″ x 48″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
WINCHES
| FDWP |
10″ Channel Winch Plae |
| FDWT |
Winch Track for 4″ Slider Winches (PER FOOT OF TRACK) |
| FD4W |
Weld-On or Slider 4″ Strap Winch (each-winch only no strap) |
ADDITIONAL OPTIONS
| 583DR |
5/8″ X 3″ D-Rings, Each Installed |
| WRC |
Wireless Remote Controller |
| SCS |
7.5 Watt Solar Charging System |
