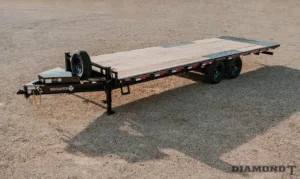

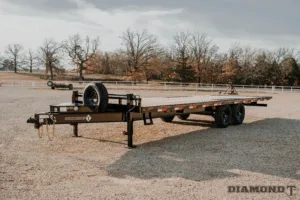

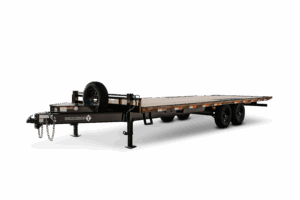

Deckover Tilt Deck DO140TD
The Diamond T Skid-Pro Trailer is leading the industry with its design and functionality available in Bumper Pull or Gooseneck. Performance while pulling empty and with a load are reasons that make our DO140TD industry leaders which include the following standard features:
• 12000# Side Handle Jack
• 3/8×2” Full Rubrail w/Stakepockets
• Reflective Tape
• Sealed Factory Wiring Harness
• Low Profile Frame Design
• Breakaway Kit w/ LED Test Light
• 100% Prime and Paint
• Tubing Light Brackets w/ Sealed LED’s
• Wide Track Frame Design
• Spare Tire Rack
• 31” Long Wedge DP Steel for Loading
• 5 Position Adj. Coupler
• Cylinder Tilt
• 3/8×2” Full Rubrail w/Stakepockets
• Reflective Tape
• Sealed Factory Wiring Harness
• Low Profile Frame Design
• Breakaway Kit w/ LED Test Light
• 100% Prime and Paint
• Tubing Light Brackets w/ Sealed LED’s
• Wide Track Frame Design
• Spare Tire Rack
• 31” Long Wedge DP Steel for Loading
• 5 Position Adj. Coupler
• Cylinder Tilt
Specifications
- Coupler: 2 5/16″ 15k Adjustable*
- Jacks: 12000# Dropleg*
- Safety Chains: 3/8″x39″ w/Sliphook
- Tongue/Neck: 10×12# WF Beam
- Main Frame: 10″x12# WF Beam
- Outer Frame: 5″ Channel

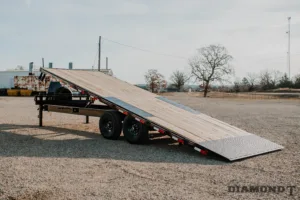

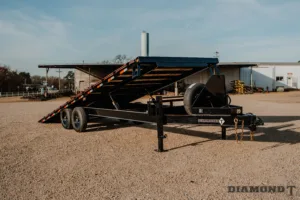

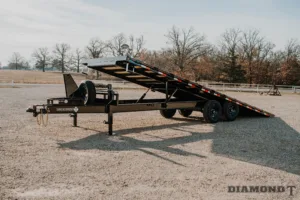

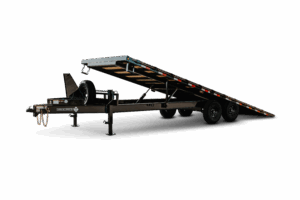

- Tilt Deck: Full Power Tilt
- Rubrail: 3/8″x2″ Flat w/SP 2’OC
- Cross Members: 3″ Channel 24″ Spacing
- Axles: 2-7000# Brake w/ EZ Lube
- Suspension: 6 Leaf Slipper
- Tires: 235/16 ST Load Range E Radial
- Wheels: 16″ 8 on 6 1/2″ Silver Mod
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
|
10222DO140TD |
102” W x 22’ L Deckover 140 Tilt Deck |
| 10224DO140TD | 102” W x 24’ L Deckover 140 Tilt Deck |
| 10226DO140TD | 102” W x 26’ L Deckover 140 Tilt Deck |
Options
JACKS
| 2SPJ | Pair of 2 Speed Dropleg Jacks |
| 1EHJ | Single Electric/Hydraulic Dropleg Jack |
| 2EHJ | Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 2358H | 235/16 LRE w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
| 235G8H | 235/16 LRG w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
UPGRADE TIRE/WHEEL
| 235GSU | Upgrade to 235/16 LRG w/8 on 6 1/2″ Single Tire and Wheel |
FLOORING
| LBOF | Oak Floor up to 20′ Bed Length |
| LBEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF | DP Steel Floor up to 20′ Bed Length |
| DPEF | DP Steel Floor for each 2′ of Bed Length over 20′ |
TOOL BOX
| 36UBB |
15” x 15” x 36” Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB |
15” x 15” x 48” Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| LBNB |
Box in Tongue |
ADDITIONAL OPTIONS
| 3CXM | Extra 3″ Channel Crossmembers |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
