Every equipment trailer we build in Rattan, Oklahoma comes in two flavors: bumper pull or gooseneck. Same deck, same frame, same axles. The only difference is where the trailer grabs the truck, and that one choice changes how it tows, what it can carry, and which truck you’ll need behind it. Here’s how to pick.
The Short Answer

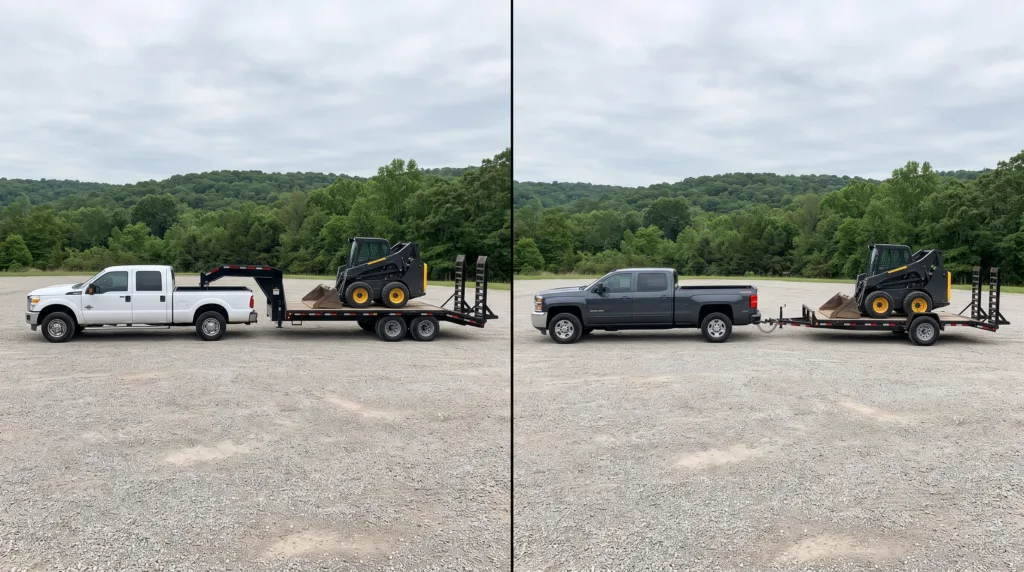

A bumper pull hooks to a receiver hitch behind the truck’s rear bumper. A gooseneck drops a coupler onto a ball mounted in the truck bed, right over the rear axle. Because the gooseneck puts its weight on the axle instead of behind it, it tows straighter, turns tighter, and carries more pin weight without pushing the truck around.
That doesn’t make the gooseneck the automatic answer. It costs more, it takes over your bed, and it needs a heavier truck to carry the pin weight. Plenty of contractors run a bumper pull for years and never wish they’d gone the other way.
Bumper Pull: Where It Wins
The receiver hitch is the big one. Almost any 3/4-ton or 1-ton truck already has one, and a lot of half-tons do too. You can hook a bumper pull to a work truck, the foreman’s truck, or a rental without installing anything. If the trailer moves between drivers, that flexibility matters.
It’s also cheaper up front, both the trailer and the truck. There’s no in-bed hitch to buy, nothing drilled into the bed, and your bed stays open for tools, a fuel tank, or a toolbox.

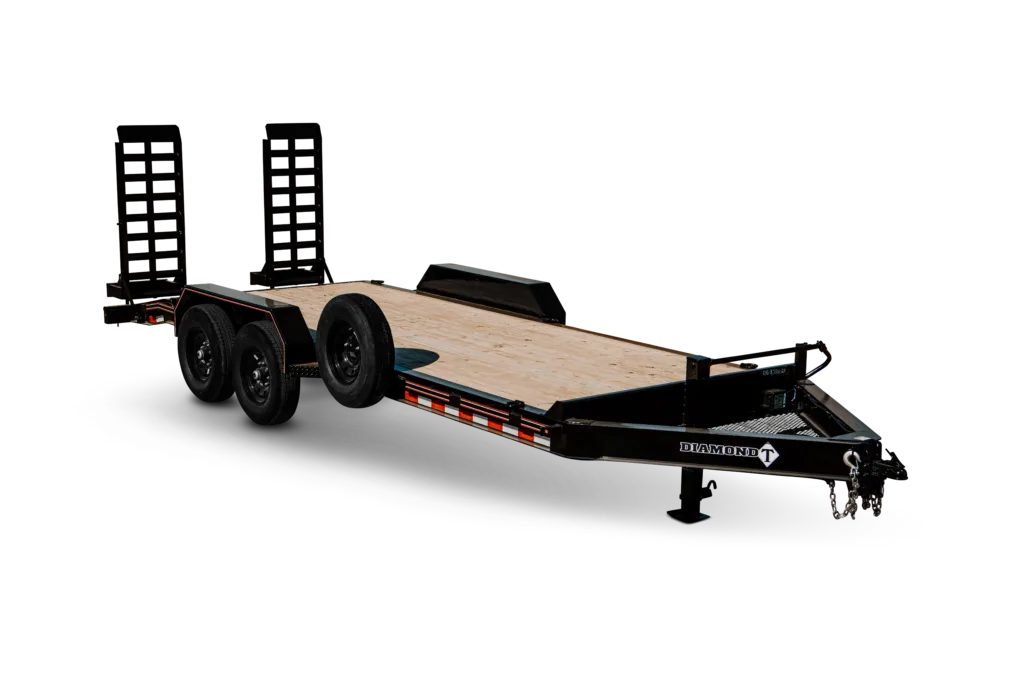

On our Skid-Pro SKP1408 bumper pull, the tongue is 6-inch channel with a 2 5/16-inch adjustable coupler rated at 15,000 lbs, a 12,000-lb dropleg jack, and a five-position adjustable coupler so you can level the trailer to your truck’s receiver height. It runs on two 7,000-lb brake axles for a 14,000-lb GVWR, and it’s offered from 20 to 28 feet.
Where it falls short
Sway. A bumper pull pivots behind the rear axle, so a crosswind, a passing semi, or a load that’s sitting too far back can start the trailer rocking. On longer, heavier loads that’s more than annoying. A weight-distribution hitch helps, but it doesn’t turn a bumper pull into a gooseneck.
Tongue weight is the other limit. A bumper pull wants roughly 10 to 15 percent of the loaded trailer weight on the hitch. Put much more than that on a receiver and you’re overloading the hitch and squatting the truck. That caps how heavy you can go before the whole setup gets unhappy.
Gooseneck: Where It Wins
Stability, first. With the coupler over the rear axle, the truck and trailer act like one long vehicle instead of two things fighting each other. You’ll feel it most on the highway, on a grade, and in a hard stop.
Turning, second. A gooseneck pivots closer to the truck’s center, so you can jackknife it into a tight jobsite or back it down a driveway a bumper pull would never make.
Capacity, third. A gooseneck can carry a lot more pin weight, typically 20 to 25 percent of the loaded trailer, and the neck spreads it into the truck’s frame. That’s why our heavier trailers only come in gooseneck. The Super Duty Skid-Pro SDSKP2008 rides on two 10,000-lb Dexter oil-bath axles, 17.5-inch Load Range H tires, and a 102-inch deck out to 30 feet. You don’t pull that behind a bumper.

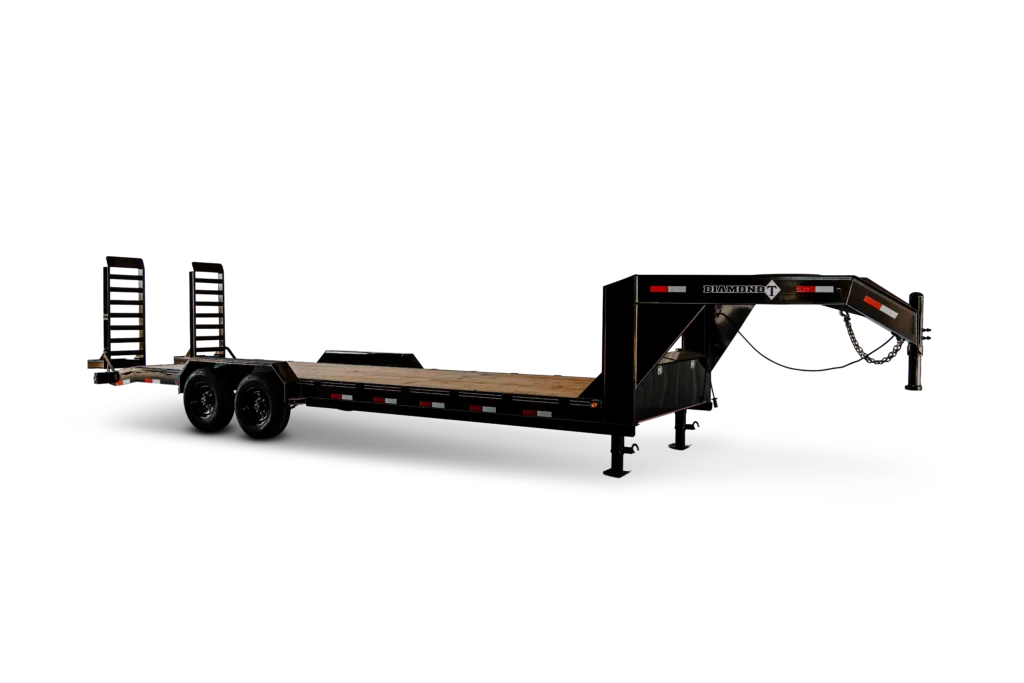

Every Diamond T gooseneck gets a 25,000-lb round adjustable coupler, a 10-inch wide-flange neck, and dual 12,000-lb dropleg jacks as standard. On the SKP1408, that’s the only spec difference between the bumper pull and the gooseneck. The gooseneck version also runs longer, 24 to 32 feet, because the neck handles the extra length without the sway.
Where it falls short
Your bed. A gooseneck ball lives in the middle of it, and the neck hangs over the front third of the bed when you’re hooked up. Tall loads in the bed and gooseneck trailers don’t mix. Most guys who run a gooseneck learn to keep the bed low or put the tools on the trailer.
Your truck. The pin weight from a loaded 14,000-lb gooseneck can run 3,000 lbs or more, and all of that lands on the truck’s rear axle. Check the payload sticker on the door jamb and the rear axle weight rating (RAWR) before you buy. A half-ton usually can’t carry it. A lot of 3/4-tons are closer to their limit than the owner thinks.
And the price. The neck, the heavier coupler, the second jack, plus a gooseneck hitch in the truck all add up.
Side-by-Side
| Factor | Bumper Pull | Gooseneck |
|---|---|---|
| Hitch point | Receiver behind the rear bumper | Ball in the truck bed, over the rear axle |
| Diamond T coupler | 2 5/16 in. adjustable, 15K (25K on Super Duty) | 25K round adjustable |
| Jacks (standard) | One 12,000 lb dropleg | Two 12,000 lb droplegs |
| Stability at speed | Good, sway-prone when long or heavy | Excellent |
| Turning radius | Wider | Tighter, will jackknife |
| Hitch weight target | 10 to 15% of loaded weight | 20 to 25% of loaded weight |
| Truck needed | Any truck with a rated receiver | 3/4-ton or 1-ton with the payload for the pin weight |
| Bed space | Fully open | Ball in the bed, neck overhangs when hooked |
| Swapping trucks | Easy | Only trucks with a gooseneck hitch |
| Skid-Pro SKP1408 lengths | 20 to 28 ft | 24 to 32 ft |
| Cost | Lower | Higher (trailer plus in-bed hitch) |
How to Read a Diamond T Model Number
Once you know the pattern, every trailer on our site tells you its size, capacity, and hitch style in one string. Take 8320SKP1408GN:
20feet long
SKPSkid-Pro
1414,000 lb GVWR
088 in. frame
GNgooseneck
Drop the GN and it’s the bumper pull. Swap SKP for HDSKP and you’re on the Heavy Duty Skid-Pro with 8,000-lb axles and a 16,000-lb GVWR; SDSKP is the Super Duty at 20,000. A 102 up front means a 102-inch deck. The same logic runs across the lineup: DO is a Deckover, DMP is a Dump, TD after the GVWR means Tilt Deck, and DTF is a Dual Tandem Flatdeck.
Which Trailers Come Which Way
Not every model is offered both ways, and that’s on purpose. The lighter the trailer, the less a gooseneck buys you. The heavier it gets, the less sense a bumper pull makes.
| Diamond T line | Bumper pull | Gooseneck | Notes |
|---|---|---|---|
| Skid-Pro 1408 | 20 to 28 ft | 24 to 32 ft | 83 in. wide, 14K GVWR, 5 ft spring-assist knee ramps |
| Heavy Duty Skid-Pro 1608 | 16 to 24 ft | 20 to 24 ft | 8 in. wide-flange beam frame, 16K GVWR, Load Range G tires |
| Super Duty Skid-Pro 2008 | 20 to 28 ft | 24 to 30 ft | 102 in. wide, 20K GVWR, drive-over fenders |
| Deckover 140 / 160 | 18 to 26 ft | 18 to 26 ft | 102 in. deck above the wheels, no fenders in the way |
| Low Profile Dump 140 / 160 | 12 to 16 ft | 14 to 16 ft | 24 or 36 in. sides, 12 in. beam frame |
| Skid-Pro Tilt Deck | Yes | Yes | 16 ft tilting deck plus a stationary front deck |
| Dual Tandem Flatdeck | No (pintle instead) | Yes | 12 in. beam neck, 10K axles, too heavy for a receiver |
Three Questions Before You Decide
1. What’s the heaviest thing you’ll actually haul?
Not the heaviest thing you might haul someday. A 7,000-lb skid steer with a bucket and a pallet of block is a bumper pull job on a 14K trailer. A 12,000-lb excavator is not. Add up the machine, attachments, fuel, and whatever rides along, then compare it to the trailer’s payload (GVWR minus the trailer’s own weight). If you’re near the top, step up a class or go gooseneck.
2. What’s your truck rated to carry, not just pull?
Tow rating gets all the attention, but payload is what kills gooseneck plans. The door-jamb sticker tells you how much weight the truck can carry in the bed and cab combined. Subtract the driver, passengers, fuel, and tools. What’s left has to cover the pin weight. If it doesn’t, the answer is a bumper pull or a bigger truck.
3. Will this trailer ever cross a state line for work?
Once a truck and trailer’s combined weight rating hits 26,001 lbs and the trailer is rated over 10,000 lbs, a Class A CDL is required for commercial use under federal rules. A 1-ton truck and a 16K or 20K gooseneck lands there quickly. Some states carve out exemptions for farm and non-commercial towing, so check yours before you buy the bigger trailer. Our dealers deal with this question every week and can tell you how it plays out locally.
Frequently Asked Questions
Can I convert a bumper pull trailer to a gooseneck later?
Not on a Diamond T, and we wouldn’t recommend it on anyone’s trailer. The gooseneck neck ties into the main frame differently and carries a different coupler, jack setup, and load path. Buy the hitch style you’ll need in two years, not the one you need today.
Can a half-ton truck pull a gooseneck trailer?
Some half-tons can be fitted with a gooseneck hitch, but almost none have the payload to carry the pin weight of a loaded 14,000-lb trailer. For a Diamond T gooseneck, plan on a 3/4-ton at minimum and a 1-ton for the Heavy Duty and Super Duty Skid-Pro models.
Is a gooseneck harder to hook up?
It’s different, not harder. You back the ball under the coupler instead of lining up a receiver, and the dual dropleg jacks lift the neck to bed height. Most drivers find it easier to line up alone because they can see the ball from the cab.
Why does the gooseneck version of the same trailer come in longer lengths?
Length adds leverage, and leverage adds sway on a bumper pull. With the pivot over the truck’s rear axle, a gooseneck handles that leverage without the trailer pushing the truck around. That’s why the Skid-Pro 1408 bumper pull tops out at 28 feet and the gooseneck goes to 32.
Do I need a weight-distribution hitch on a bumper pull equipment trailer?
Ask your dealer for your specific truck. On a 3/4-ton or 1-ton pulling within its rating, many owners run without one. If the truck squats noticeably when loaded or you feel the trailer steering the truck on the highway, a weight-distribution hitch is the fix before you go to a gooseneck.
Where can I buy a Diamond T trailer?
Diamond T trailers are built in Rattan, Oklahoma and sold through independent dealers across the country. Use the Dealer Locator to find the closest one, and they can spec a bumper pull or gooseneck to your truck.
Ready to Spec Yours?
Your local Diamond T dealer can match a bumper pull or gooseneck to your truck, your load, and your state’s rules.
Still narrowing down the trailer type itself? Start with how to choose the right trailer for equipment hauling, then come back here for the hitch decision. Every trailer we build is covered by the Diamond T warranty.
