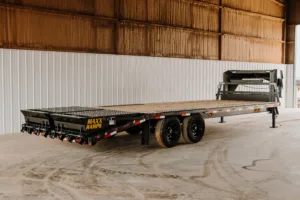

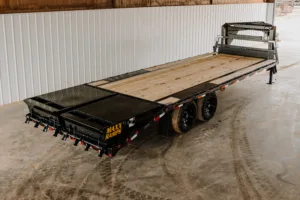

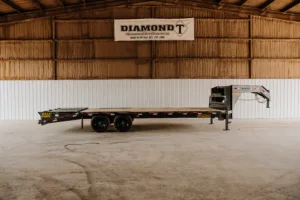

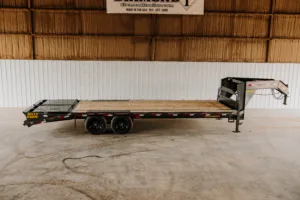

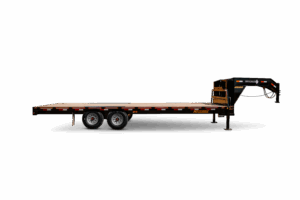

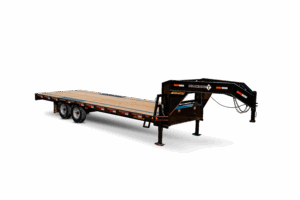

Single Wheel Flatdeck SWF175
The Diamond T Single Wheel Flatdeck (SWF) is leading the industry with its design and functionality. Performance while pulling empty and with a load are reasons that make our SWF175GN an industry leader which includes the following standard features:
- Lockable Toolbox in Neck
- Wide Track Frame Design
- Pipe Spools in Rub Rail
- Side Marker/Turn Lights

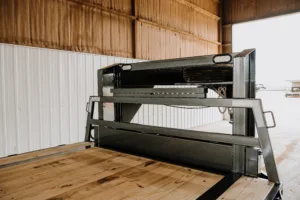

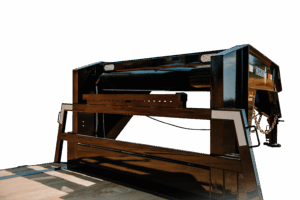

- See Thru Headache Rack
- Front Steps w/ Grab Handles
- Sealed Factory Wiring Harness
- Low Profile PIERCED Beam Frame
- 100% Prime and Paint
- All Sealed LED Lights
- 5′ Dovetail w/ H.D. Tubing Tailboard
- Double Hinge – Spring Assist Ramps
Specifications
- Coupler: 2 5/16″ Round Adj.
- Jacks: 2-12000# Dropleg
- Safety Chains: 3/8″x39″ w/Sliphook
- Neck: 12″ WF Beam
- Main Frame: 12″x14# PIERCED Beam*
- Outer Frame: 5″ Channel
- Rubrail: 3/8″x2″ Flat w/SP 2′ OC
- Cross Members: 3″ Channel 16″ Spacing
- Axle: 2-8000# Brake w/ EZ Lube
- Suspension: 6 Leaf Slipper
- Tires: 235/16 ST Load Range G Radial
- Wheels: 16″ 8 on 6 1/2″ Silver Mod
- Dovetail: 5′ All Steel Dovetail and Ramps
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
*10234 and longer have 12″x19# beam frame and MUST have Tri-Axle Option.
Models
| 10220SWF175 | 102″ W x 20′ L Single Wheel Flatdeck 175 |
| 10222SWF175 | 102″ W x 22′ L Single Wheel Flatdeck 175 |
| 10224SWF175 | 102″ W x 24′ L Single Wheel Flatdeck 175 |
| 10225SWF175 | 102″ W x 25′ L Single Wheel Flatdeck 175 |
| 10226SWF175 | 102″ W x 26′ L Single Wheel Flatdeck 175 |
| 10228SWF175 | 102″ W x 28′ L Single Wheel Flatdeck 175 |
| 10230SWF175 | 102″ W x 30′ L Single Wheel Flatdeck 175 |
| 10232SWF175 | 102″ W x 32′ L Single Wheel Flatdeck 175 |
| 10234SWF175 | 102″ W x 34′ L Single Wheel Flatdeck 175 |
| 10235SWF175 | 102″ W x 35′ L Single Wheel Flatdeck 175 |
| 10236SWF175 | 102″ W x 36′ L Single Wheel Flatdeck 175 |
| 10238SWF175 | 102″ W x 38′ L Single Wheel Flatdeck 175 |
| 10240SWF175 | 102″ W x 40′ L Single Wheel Flatdeck 175 |
Options
RAMPS / DOVETAIL
| FDSD | Straight Deck w/No Dovetail or Ramps |

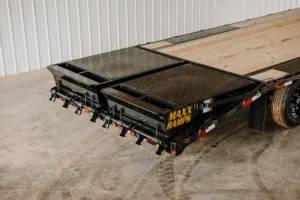

| MXR | MAXX Ramps – Heavy Duty 2-way Spring Assist Dovetail Ramps |
| CPUD | Center Pop-Up Dovetail Section w/Bolt on Removable Hinges |
| 3RDR | Center (3rd) Ramp w/Double Hinge and Spring Assist |
| FDRR | 8′ 4″ Channel Ramps w/Rack |
JACKS
| 2SPJ | Pair of 2 Speed Dropleg Jacks |
| 2SPJBK | Pair of 2 Speed Dropleg Jacks Binkley Style |
| 2EHJ | Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 235G8H | 235/16 LRG w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
| 215HSS | 215/17.5 LRH w/8 on 6 1/2″ Super Single Spare Tire and Wheel |
UPGRADE TIRE/WHEEL
| 215HSU | Upgrade to 215/17.5 LRH w/8 on 6 1/2″ Single Tire and Wheel |
FLOORING
| FDOF | Oak Floor up to 20′ Bed Length |
| FDEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF-FDNP | NOTE: Price per foot. DP Steel Floor, Non-Pierced Frame |
| DPSF-FDP | NOTE: Price per foot. DP Steel Floor, Pierced Frame |
NECK
| DOGN | 102″ x 6′ Deck Over Gooseneck |
| FD19N | 12″ X 19# WF Beam Neck |
| FDRR | Raised Riser 4″ or 6″ Neck |
TOOL BOX
| 36UBB | 15″ x 15″ x 36″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB | 15″ x 15″ x 48″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
WINCHES
| FDWP | 10″ Channel Winch Plate |
| FDWT | Winch Track for 4″ Slider Winches (PER FOOT OF TRACK) |
| FD4W | Weld-On or Slider 4″ Strap Winch (each-winch only no strap) |
ADDITIONAL OPTIONS
| FDTT | 5″ Torque Tube for Flex Control |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
