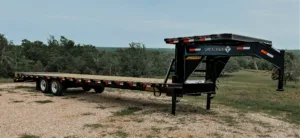

Super Single Flatdeck SS200
The Diamond T Super Single Flatdeck is leading the industry with its design and functionality. Whether you are pulling an empty trailer or a full load, the SS200 is an industry leader and includes the following Standard Features:
- Lockable Toolbox in Neck
- Wide Track Frame Design
- Torque Tube for Flex Control
- Pipe Spools in Rub Rail
- Side Marker/Turn Lights

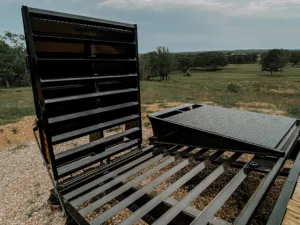

- See Thru Headache Rack
- Front Steps w/ Grab Handles
- Sealed Factory Wiring Harness
- Low Profile PIERCED Beam Frame
- 100% Prime and Paint
- All Sealed LED Lights
- 5′ Dovetail w/ H.D. Tubing Tailboard

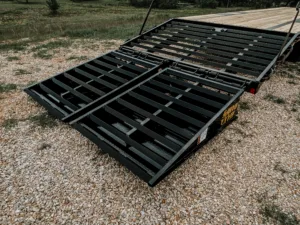

- Double Hinge – Spring Assist Ramps
Specifications
- Coupler: 25/16″ Round Adj.
- Jacks: 2-12000# Dropleg
- Safety Chains: 3/8″x39″ w/Sliphook
- Neck: 12″ WF Beam
- Main Frame: 12″x19# PIERCED Beam*
- Outer Frame: 5″ Channel
- Rubrail: 3/8″x2″ Flat w/SP 2′ OC
- Cross Members: 3″ Channel 16″
- Spacing Axles: 2-10000# Dexter Oil Bath Electric Brake
- Suspension: Dexter 5 Leaf Slipper

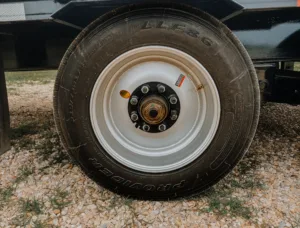

- Tires: 215/17.5 Load Range H Radial
- Wheels: 17.5″ 8 on 6 1/2″ Silver
- Dovetail: 5′ All Steel Dovetail and Ramps
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
*10238 and 10240 have 12″x22# WF beam frame
Models
| 10220SS200 | 102″ W x 20′ L Super Single Flatdeck 200 |
| 10222SS200 | 102″ W x 22′ L Super Single Flatdeck 200 |
| 10224SS200 | 102″ W x 24′ L Super Single Flatdeck 200 |
| 10225SS200 | 102″ W x 25′ L Super Single Flatdeck 200 |
| 10226SS200 | 102″ W x 26′ L Super Single Flatdeck 200 |
| 10228SS200 | 102″ W x 28′ L Super Single Flatdeck 200 |
| 10230SS200 | 102″ W x 30′ L Super Single Flatdeck 200 |
| 10232SS200 | 102″ W x 32′ L Super Single Flatdeck 200 |
| 10234SS200 | 102″ W x 34′ L Super Single Flatdeck 200 |
| 10235SS200 | 102″ W x 35′ L Super Single Flatdeck 200 |
| 10236SS200 | 102″ W x 36′ L Super Single Flatdeck 200 |
| 10238SS200 | 102″ W x 38′ L Super Single Flatdeck 200 |
| 10240SS200 | 102″ W x 40′ L Super Single Flatdeck 200 |
Options
SUSPENSION
| DTSPD | 48 1/2″ Spread Axle Conversion |
| HDSS | Dexter Heavy Duty Adjustable Suspension |
RAMPS / DOVETAIL
| FDSD | Straight Deck w/No Dovetail or Ramps |

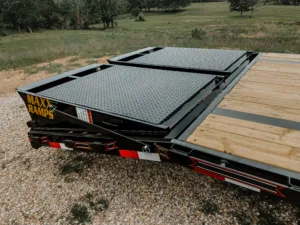

| MXR | MAXX Ramps – Heavy Duty 2-way Spring Assist Dovetail Ramps |
| CPUD | Center Pop-Up Dovetail Section w/Bolt on Removable Hinges |
| 3RDR | Center (3rd) Ramp w/Double Hinge and Spring Assist |
| FDRR | 8′ 4″ Channel Ramps w/Rack |
JACKS
| 2SPJ | Pair of 2 Speed Dropleg Jacks |
| 2SPJBK | Pair of 2 Speed Dropleg Jacks Binkley Style |
| 2EHJ | Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 215HSS | 215/17.5 LRH w/8 on 6 1/2″ Super Single Spare Tire and Wheel |
FLOORING
| FDOF | Oak Floor up to 20′ Bed Length |
| FDEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF-FDNP | NOTE: Price per foot. DP Steel Floor, Non-Pierced Frame |
| DPSF-FDP | NOTE: Price per foot. DP Steel Floor, Pierced Frame |
FRAME
| FDTF | Trussed Frame for Additional Support |
| FD22F | 12″ x 22# WF Beam Frame |
| FDDZR | Frame Upgrade Dozer Package (3/8″ Dove/Ramp Rungs, 6″ Channel Sides, 3/8″ x 3″ Rubrail) |
NECK
| DOGN | 102″ x 6′ Deck Over Gooseneck |
| FD22N | 12″ X 22# WF Beam Neck |
| FDRR | Raised Riser 4″ or 6″ Neck |
TOOL BOX
| 36UBB | 15″ x 15″ x 36″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB | 15″ x 15″ x 48″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
WINCHES
| FDWP | 10″ Channel Winch Plate |
| FDWT | Winch Track for 4″ Slider Winches (PER FOOT OF TRACK) |
| FD4W | Weld-On or Slider 4″ Strap Winch (each-winch only no strap) |
ADDITIONAL OPTIONS
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
