Dual Tandem Flatbed DTF259P
The Diamond T Dual Tandem Flatbed is leading the industry with its design and functionality. Whether you are pulling an empty trailer or a full load, the DTF259P is an industry leader and includes the following Standard Features:
- Lockable Toolbox in Neck
- Torque Tube for Flex Control
- Pipe Spools in Rub Rail
- Side Marker/Turn Lights
- Front Bump Rail
- Front Steps w/ Grab Handles
- Sealed Factory Wiring Harness
- Low Profile PIERCED Beam Frame
- 100% Prime and Paint
- All Sealed LED Lights

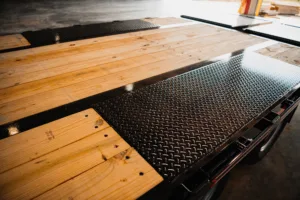

- 5′ Dovetail w/ H.D. Tubing Tailboard
- Double Hinge – Spring Assist Ramps
Specifications

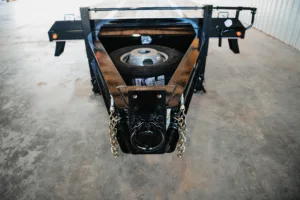

Coupler: 3″ Adjustable Pintle Eye 60k

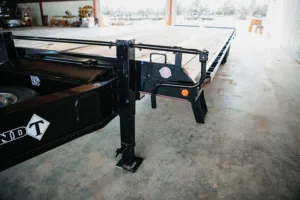

Jacks: 2-12000# Dropleg
Safety Chains: 3/8″x39″ w/Sliphook
Neck: 12″ WF Beam
Main Frame: 12″x19# PIERCED Beam*
Outer Frame: 5″ Channel
Rubrail: 3/8″x2″ Flat w/SP 2′ OC
Cross Members: 3″ Channel 16″ Spacing

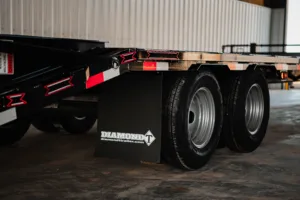

Axles: 2-12000# Dexter Oil Bath Electric Brake
Suspension: Dexter 6 Leaf Slipper
Tires: 235/16 ST Load Range E Radial
Wheels: 16″ 8 on 6 1/2″ Silver Dual

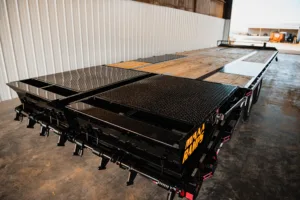

Dovetail: 5′ All Steel Dovetail and Ramps
Flooring: 2×8 Pressure Treated Pine
Lights: All Sealed LED Stop, Tail, Turn and Clearance
Finish: Phosphate etched, primed, 2 coats acrylic enamel
*10238 and 10240 have 12″x22# WF beam frame
Models
| 10220DTF259P | 102″ W x 20′ L Dual Tandem Flatdeck 259 Pintle |
| 10222DTF259P | 102″ W x 22′ L Dual Tandem Flatdeck 259 Pintle |
| 10224DTF259P | 102″ W x 24′ L Dual Tandem Flatdeck 259 Pintle |
| 10225DTF259P | 102″ W x 25′ L Dual Tandem Flatdeck 259 Pintle |
| 10226DTF259P | 102″ W x 26′ L Dual Tandem Flatdeck 259 Pintle |
| 10228DTF259P | 102″ W x 28′ L Dual Tandem Flatdeck 259 Pintle |
| 10230DTF259P | 102″ W x 30′ L Dual Tandem Flatdeck 259 Pintle |
| 10232DTF259P | 102″ W x 32′ L Dual Tandem Flatdeck 259 Pintle |
| 10234DTF259P | 102″ W x 34′ L Dual Tandem Flatdeck 259 Pintle |
| 10235DTF259P | 102″ W x 35′ L Dual Tandem Flatdeck 259 Pintle |
| 10236DTF259P | 102″ W x 36′ L Dual Tandem Flatdeck 259 Pintle |
| 10238DTF259P | 102″ W x 38′ L Dual Tandem Flatdeck 259 Pintle |
| 10240DTF259P | 102″ W x 40′ L Dual Tandem Flatdeck 259 Pintle |
Options
AXLES
| 312K | 3rd 12000# Electric Brake Axle (25900# GVWR 12000# GAWR) |
| 12KEH | 12000# Electric over Hydraulic Disc Brake Axles |
SUSPENSION
| DTSPD | 48 1/2″ Spread Axle Conversion |
| HDSS | Dexter Heavy Duty Adjustable Suspension |
RAMPS / DOVETAIL
| FDSD | Straight Deck w/No Dovetail or Ramps |

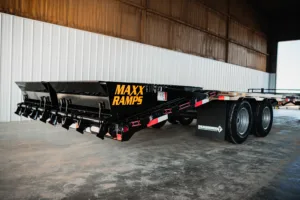

| MXR | MAXX Ramps – Heavy Duty 2-way Spring Assist Dovetail Ramps |
| CPUD | Center Pop-Up Dovetail Section w/Bolt on Removable Hinges |
| 3RDR | Center (3rd) Ramp w/Double Hinge and Spring Assist |
| FDRR | 8′ 4″ Channel Ramps w/Rack |
JACKS
| 2SPJ | Pair of 2 Speed Dropleg Jacks |
| 2SPJBK | Pair of 2 Speed Dropleg Jacks Binkley Style |
| 2EHJ | Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 235ED | 235/16 LRE w/8 on 6 1/2″ Silver Dual Spare Tire and Wheel |
| 235GD | 235/16 LRG w/8 on 6 1/2″ Silver Dual Spare Tire and Wheel |
| 215HD | 215/17.5 LRH w/8 on 6 1/2″ Dual Spare Tire and Wheel |
UPGRADE TIRE/WHEEL
| 235GDU | Upgrade to 235/16 LRG w/8 on 6 1/2″ Silver Dual Tire and Wheel |
| 215HDU | Upgrade to 215/17.5 LRH w/8 on 6 1/2″ Dual Tire and Wheel |
FLOORING
| FDOF | Oak Floor up to 20′ Bed Length |
| FDEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF-FDNP | NOTE: Price per foot. DP Steel Floor, Non-Pierced Frame |
| DPSF-FDP | NOTE: Price per foot. DP Steel Floor, Pierced Frame |
FRAME
| FDTF | Trussed Frame for Additional Support |
| FD22F | 12″ x 22# WF Beam Frame |
| FDDZR | Frame Upgrade Dozer Package (3/8″ Dove / Ramp Rungs, 6″ Channel Sides, 3/8″ x 3″ Rubrail) |
TOOL BOX
| 36UBB | 15″ x 15″ x 36″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB | 15″ x 15″ x 48″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
WINCHES
| FDWP | 10″ Channel Winch Plate |
| FDWT | Winch Track for 4″ Slider Winches (PER FOOT OF TRACK) |
| FD4W | Weld-On or Slider 4″ Strap Winch (each-winch only no strap) |
ADDITIONAL OPTIONS
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
