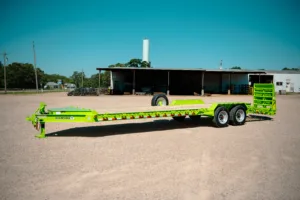

Heavy Duty Skid-Pro HDSKP1608 Bumper Pull

Heavy Duty Skid-Pro HDSKP1608

The Diamond T Heavy Duty Skid-Pro Trailer is leading the industry with its design and functionality available in Bumper Pull or Gooseneck. Performance while pulling empty and with a load are reasons that make our HDSKP1608 an industry leader which includes the following standard features:

  • 3/8×2″Full Rubrail w/ Stakepockets
  • Pipe Spools in Rub Rail
  • Spare Tire Rack on BP and GN
  • DP Fenders w/ Teardrop
  • Sealed Factory Wiring Harness
  • 12000# Side Handle Jack
  • 30″ All Steel Self-cleaning Dovetail
  • Oversized Toolbox on BP and GN
  • 100% Prime and Paint
  • Tubing Tail Board w/ Sealed LED’s

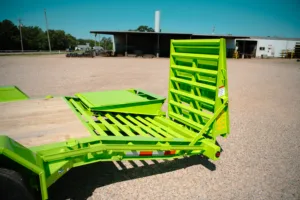

  • 5′ Long 4″ Channel Spring Assist Knee Ramps
  • 2′- Extra Wide Ramps
  • 6 D-rings at 5/8″ x 3″

Specifications

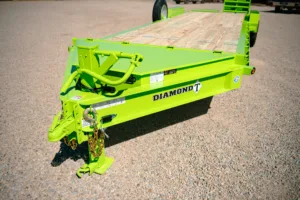

  • Coupler: 2 5/16″ 15k Adjustable*
  • Jacks: 12000# Dropleg*
  • Safety Chains: 3/8″x39″ w/Sliphook
  • Tongue/Neck: 8″x13# WF / 10″ WF on GN
  • Frame: 8″x13# WF Beam
  • Front Bumprail: Integrated Bump Stop
  • Rubrail: 3/8″x2″ Flat w/ SP 2′ OC
  • Cross Members: 3″ Channel 16″ Spacing
  • Axles: 2-8000# Brake w/ EZ Lube
  • Suspension: 6 Leaf Slipper
  • Tires: 235/16 ST Load Range G Radial
  • Wheels: 16″ 8 on 6 1/2″ Silver Mod
  • Fenders: 9″x72″ DP Dbl. Sq. Broke w/Back
  • Flooring: 2×8 Pressure Treated Pine
  • Lights: All Sealed LED Stop, Tail, Turn and Clearance
  • Finish: Phosphate etched, primed, 2 coats acrylic enamel

*GN Models will have 25K Round Adjustable Coupler and Dual 12K Dropleg Jacks

Models

8316HDSKP1608 83″ W x 16′ L Heavy Duty Skid-Pro 1608 Bumper Pull
8318HDSKP1608 83″ W x 18′ L Heavy Duty Skid-Pro 1608 Bumper Pull
8320HDSKP1608 83″ W x 20′ L Heavy Duty Skid-Pro 1608 Bumper Pull
8322HDSKP1608 83″ W x 22′ L Heavy Duty Skid-Pro 1608 Bumper Pull
8324HDSKP1608 83″ W x 24″ L Heavy Duty Skid-Pro 1608 Bumper Pull

Options

RAMPS / DOVETAIL

SLREXHD 5′ Long 4″ Channel Ramps w/Slide-in Ramp Rack

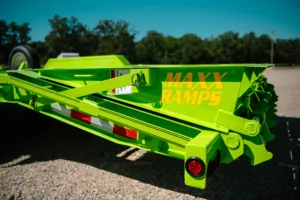

MMXR83 MAXX Ramps – 4′ Dovetail with Spring Assist MINI MAXX Ramps, 83″ Wide HD
LBSD Straight Deck w/No Dovetail or Ramps

JACKS

2SPJ Pair of 2 Speed Dropleg Jacks
1EHJ Single Electric/Hydraulic Dropleg Jack
2EHJ Pair of Electric/Hydraulic Dropleg Jacks

SPARE TIRE / WHEEL

235G8H 235/16 LRG w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel
215H8H 215/17.5 LRH w/8 on 6 1/2″ Single Spare Tire and Wheel

UPGRADE TIRE / WHEEL

215HSU Upgrade to 215/17.5 LRH w/8 on 6 1/2″ Single Tire and Wheel

FLOORING

LBOF Oak Floor up to 20′ Bed Length
LBEO Oak Floor for each Foot of Bed Length over 20′
DPSF DP Steel Floor up to 20′ Bed Length
DPEF DP Steel Floor for each 2′ of Bed Length over 20′

ADDITIONAL OPTIONS

3CXM Extra 3″ Channel Crossmembers
FRLT Front and Rear Fender Lights
583DR 5/8″ X 3″ D-Rings, Each Installed
DOF 10″ Channel Drive Over Fenders
