Heavy Duty Skid-Pro
HDSKP1408GN

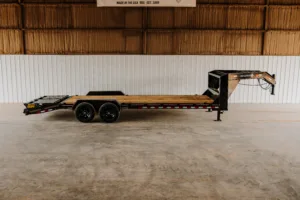

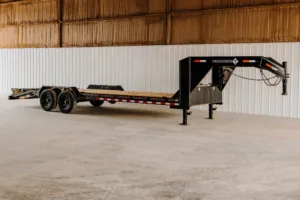

The Diamond T Skid-Pro Trailer is leading the industry with its design and functionality available in Bumper Pull or Gooseneck. Performance while pulling empty and with a load are reasons that make our HDSKP1408 GN an industry leader which includes the following standard features:
- 3/8×2″Full Rubrail w/ Stakepockets
- Pipe Spools in Rub Rail
- Spare Tire Rack on BP and GN
- DP Fenders w/ Teardrop
- Sealed Factory Wiring Harness
- 12000# Side Handle Jack

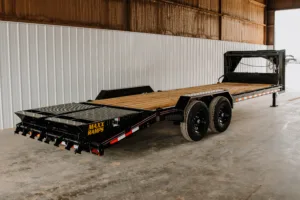

- 30″ All Steel Self-cleaning Dovetail
- Oversized Toolbox on BP and GN
- 100% Prime and Paint
- Tubing Tail Board w/ Sealed LED’s
- 5′ Long 4″ Channel Spring Assist Knee Ramps
- 2′- Extra Wide Ramps
- 6 D-rings at 5/8″ x 3″
Specifications
- Coupler: 2 5/16″ 15k Adjustable*
- Jacks: 12000# Dropleg*
- Safety Chains: 3/8″x39″ w/Sliphook

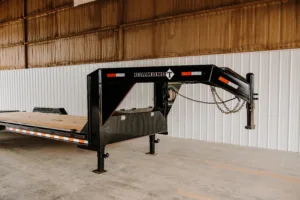

- Tongue/Neck: 8″x13# WF / 10″ WF on GN
- Frame: 8″x13# WF Beam
- Front Bumprail: Integrated Bump Stop
- Rubrail: 3/8″x2″ Flat w/ SP 2′ OC
- Cross Members: 3″ Channel 16″ Spacing

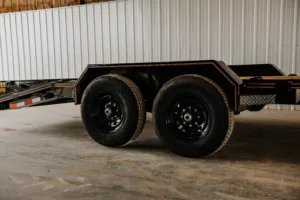

- Axles: 2-7000# Brake w/ EZ Lube
- Suspension: 6 Leaf Slipper
- Tires: 235/16 ST Load Range E Radial
- Wheels: 16″ 8 on 6 1/2″ Silver Mod
- Fenders: 9″x72″ DP Dbl. Sq. Broke w/Back

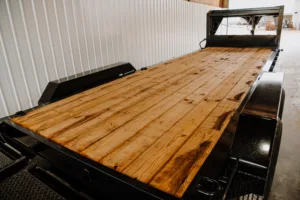

- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
*GN Models will have 25K Round Adjustable Coupler and Dual 12K Dropleg Jacks
Models
| 8320HDSKP1408GN | 83″ W x 20′ L Heavy Duty Skid-Pro 1408 Gooseneck |
| 8322HDSKP1408GN | 83″ W x 22′ L Heavy Duty Skid-Pro 1408 Gooseneck |
| 8324HDSKP1408GN | 83″ W x 24″ L Heavy Duty Skid-Pro 1408 Gooseneck |
Options
RAMPS / DOVETAIL
| SLREXHD | 5′ Long 4″ Channel Ramps w/Slide-in Ramp Rack |
| MMXR83 | MAXX Ramps – 4′ Dovetail with Spring Assist MINI MAXX Ramps, 83″ Wide HD |
| LBSD | Straight Deck w/No Dovetail or Ramps |
JACKS
| 2SPJ | Pair of 2 Speed Dropleg Jacks |
| 1EHJ | Single Electric/Hydraulic Dropleg Jack |
| 2EHJ | Pair of Electric/Hydraulic Dropleg Jacks |
SPARE TIRE / WHEEL
| 2358H | 235/16 LRE w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
| 235G8H | 235/16 LRG w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
UPGRADE TIRE / WHEEL
| 235GSU | Upgrade to 235/16 LRG w/8 on 6 1/2″ Single Tire and Wheel |
FLOORING
| LBOF | Oak Floor up to 20′ Bed Length |
| LBEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF | DP Steel Floor up to 20′ Bed Length |
| DPEF | DP Steel Floor for each 2′ of Bed Length over 20′ |
ADDITIONAL OPTIONS
| 3CXM | Extra 3″ Channel Crossmembers |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
| DOF | 10″ Channel Drive Over Fenders |
