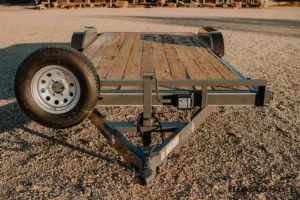

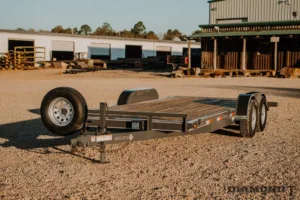

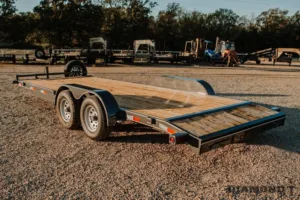

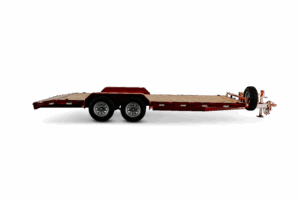

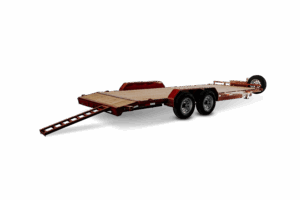

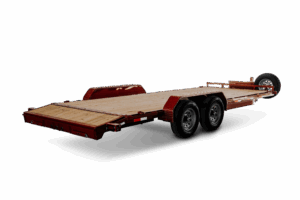

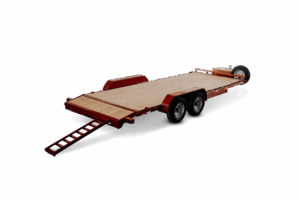

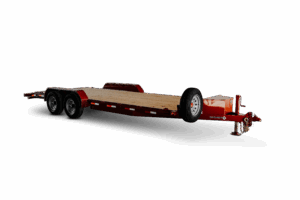

Heavy Car Hauler HCH104
The Diamond T Heavy Car Hauler Trailer is leading the industry with its design and functionality that is available as a Bumper Pull Trailer. Performance while pulling empty and with a load are reasons that make our HCH104 an industry leader which includes the following standard features:
- 6 Tie Downs on Frame
- Set Back Jack
- Wrap Around Tongue
- Wiring Sealed in Frame
- 2′ Long Dovetail
- Rock Guard on Fenders
- 100% Prime and Paint
- Bulldog Style Coupler
- 5′ Long 2″x2″x1/4″ Angle

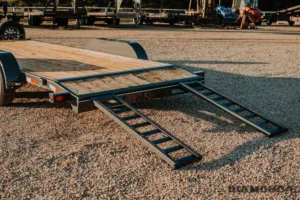

- Ramps w/ Rear Rack
Specifications
- Coupler: 2 5/16″ Bulldog Style
- Jacks: 7000# Dropleg
- Safety Chains: 3/8″x39″ w/Sliphook
- Tongue: 5″ Channel
- Frame: 5″ Channel
- Front Bumprail: 2″ Square Tubing
- Front Uprights: 2″x2″x3/16″ Angle
- Cross Members: 3″x2″x3/16″ Angle
- Axles: 1-5200# Idler, 1-5200# Brake w/ EZ Lube
- Suspension: 5 Leaf Double Eye
- Tires: 225/15 ST Load Range D Radial
- Wheels: 15″ 6 on 5 1/2″ Silver Mod

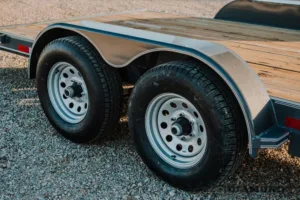

- Fenders: 9″x72″ Teardrop w/ Radius Cut Back

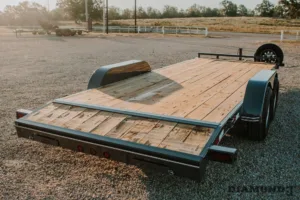

- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 8314HCH104 | 83″ W x 14′ L Heavy Car Hauler 104 |
| 8316HCH104 | 83″ W x 16′ L Heavy Car Hauler 104 |
| 8318HCH104 | 83″ W x 18′ L Heavy Car Hauler 104 |
| 8320HCH104 | 83″ W x 20′ L Heavy Car Hauler 104 |
| 8322HCH104 | 83″ W x 22′ L Heavy Car Hauler 104 |
| 8324HCH104 | 83″ W x 24′ L Heavy Car Hauler 104 |
Options
AXLE
| 252BK | Two 5200# Electric Brake Axles |
GATES
| TGCH | 83″ Split Rear Tractor Gate with Spring Assist |
RAMPS / DOVETAIL
| LBDP2 | 2′ All Steel DP Dovetail |
| LBSD | Straight Deck w/No Dovetail or Ramps |
SPARE TIRE / WHEEL
| 2256H | ST 225/15 LRD w/6 on 5 1/2″ Silver Mod Spare Tire & Wheel |
| 2356H | 235/16 LRE w/6 on 5 1/2″ Silver Mod Spare Tire & Wheel |
UPGRADE TIRE/WHEEL
| 2356U | Upgrade to ST 235/16 LRE w/6 on 5 1/2″ Single Tire and Wheel |
FLOORING
| DPSF | DP Steel Floor up to 20′ Bed Length |
| DPEF | DP Steel Floor for each 2′ of Bed Length over 20′ |
TOOL BOX
| LBNBAF | A-Frame Box in Bumper Pull |
ADDITIONAL OPTIONS
| CHRR | 3/8″ x 2″ Full Rubrail w/ Stakepockets |
| STR | Spare Tire Rack |
| FRLT | Front and Rear Fender Lights |
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
