Dump Trailer DMP160

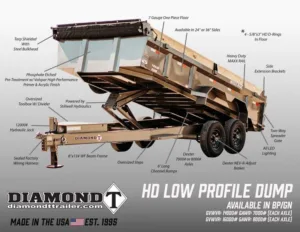

The Diamond T Bumper Pull and Gooseneck Dump Bed Trailers are leading the industry in their design and functionality. With hydraulics to dump each load, you get the performance and power needed for every job. Our DMP160 is an industry leader which includes the following standard features:
- Large Oversized Toolbox w/ Divider
- Tarp Shielded with Steel Bulkhead
- Heavy Duty Maxx Rail Header
- 7 Gauge One Piece Floor
- Pump and Battery in Toolbox
- Large Step Both Sides
- 2 Way Spreader Rear Gate
- Double Acting Hoist
- 6′ Long 3″ Channel Ramps w/Rack
- Hydraulic Power Jack
- 24″ Tall Sides with Extension Brackets
- 4-5/8×3″ D-Rings in Floor
- 8″ Raised Front Bulkhead
- Spare Tire Rack
- All Sealed Wire Harness
- 5 Amp Hour Charger
- 24″ or 36″ Sides
Specifications
- Coupler: 2 5/16″ 15k Adjustable*
- Jacks: 12000# Hydraulic
- Safety Chains: 3/8″x39″ w/Sliphook
- Tongue/Neck: 8″x13# WF / 10″ WF on GN
- Lower Frame: 12″x14# PIERCED Beam
- Rear Door: 2-Way Spreader
- Cross Members: 3″ Channel 12″ Spacing
- Floor: 7 Gauge One Piece
- Axles: 2-8000# Electric Brake w/ EZ Lube
- Suspension: 6 Leaf Slipper

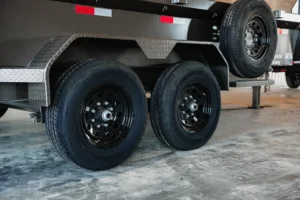

- Tires: 235/16 ST Load Range E Radial
- Wheels: 16″ 8 on 6 1/2″ Silver Mod
- Fenders: 9″x72″ DP Double Square Broke
- Dump Sides: 12 Gauge Broke Panel
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
*GN Models will have 25K Round Adjustable Coupler
Models
| 8314DMP160 | 83″ W x 14′ L Beam Frame Low Profile Dump 160 with 24″ Sides |
| 8316DMP160 | 83″ W x 16′ L Beam Frame Low Profile Dump 160 with 24″ Sides |
| 8314DMP160-36 | 83″ W x 14′ L Beam Frame Low Profile Dump 160 with 36″ Sides |
| 8316DMP160-36 | 83″ W x 16′ L Beam Frame Low Profile Dump 160 with 36″ Sides |
Options
JACKS
| 212DJ | Second 12000# Hydraulic Jack |
SPARE TIRE / WHEEL
| 215H8H | 215/17.5 LRH w/8 on 6 1/2″ Single Spare Tire and Wheel |
| 235G8H | 235/16 LRG w/8 on 6 1/2″ Silver Mod Spare Tire and Wheel |
UPGRADE TIRE / WHEEL
| 215HSU | Upgrade to 215/17.5 LRH w/8 on 6 1/2″ Single Tire and Wheel |
ADDITIONAL OPTIONS
| EKNL | Side Extension Bracket and Bolt Kit WITHOUT LUMBER |
| EKWL | Side Extension Bracket and Bolt Kit WITH LUMBER |
| SCS | 7.5 Watt Solar Charging System |
