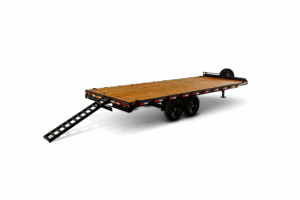

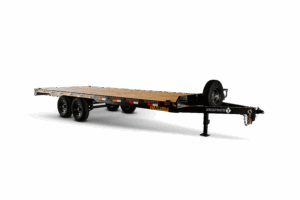

MDDO140 Bumper Pull
The Diamond T Deck Over Flatdeck is leading the industry with its design and functionality. Whether you are pulling an empty trailer or a full load, the MDDO140 Trailer is an industry leader and include the following Standard Features:
- Side Handle Jack
- Reflective Tape
- Sealed Factory Wiring Harness
- Low Profile Frame Design
- Breakaway Kit w/ LED Test Light
- 100% Prime and Paint
- Tubing Tailboard w/ Sealed LED’s
- Wide Track Frame Design
- Spare Tire Rack
- Chain Tray in Tongue
- 4 – 5/8” x 3” D-Rings
- Spools in Rubrail
Specifications
- Coupler: 2 5/16″ 15K Adjustable
- Jacks: 12000# Dropleg
- Safety Chains: 3/8″x39″ w/Sliphook
- Tongue: 6” Channel
- Main Frame: 6” Channel
- Outer Frame: 5″ Channel
- Rubrail: 3/8″x2″ Flat w/SP 2′ OC
- Cross Members: 3″ Channel 24″ Spacing
- Axles: 2-7000# Brake w/ E-Z Lube
- Suspension: 6 Leaf Slipper
- Tires: 235/16 ST Load Range E Radial
- Wheels: 16″ 8 on 6 1/2″ Silver Mod
- Flooring: 2×8 Pressure Treated Pine
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
Models
| 10216MDDO140 | 102” W x 16’ L Medium Duty Deck Over Flatdeck 140 |
| 10218MDDO140 | 102” W x 18’ L Medium Duty Deck Over Flatdeck 140 |
| 10220MDDO140 | 102” W x 20’ L Medium Duty Deck Over Flatdeck 140 |
| 10222MDDO140 | 102” W x 22’ L Medium Duty Deck Over Flatdeck 140 |
| 10224MDDO140 | 102” W x 24’ L Medium Duty Deck Over Flatdeck 140 |
Options
RAMPS / DOVETAIL
| DORR | 7’ Long 3” Channel Ramps w/Rack |
SPARE TIRE / WHEEL
| 2356H | 235/16 LRE w/6 on 5 1/2” Silver Mod Spare Tire and Wheel |
FLOORING
| FDOF | Oak Floor up to 20′ Bed Length |
| FDEO | Oak Floor for each Foot of Bed Length over 20′ |
| DPSF | DP Steel Floor up to 20′ Bed Length |
| DPEF | DP Steel Floor for each 2′ of Bed Length over 20′ |
TOOL BOX
| 36UBB | 15″ x 15″ x 36″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| 48UBB | 15″ x 15″ x 48″ Underbody Toolbox NOT GUARANTEED WATERTIGHT |
| LBNB | Box in Tongue |
ADDITIONAL OPTIONS
| 583DR | 5/8″ X 3″ D-Rings, Each Installed |
