CARGO104
The Diamond T Cargo Trailer is leading the industry in their design and functionality. Our Cargo is an industry leader which include the following standard features:
- All Steel Structure
- 36” Curbside Door
- Torsion Axles
- All Sealed LED’s
- 100% Primer and Paint
- Aluminum Rock Guards
- Tongue and Groove Treated Floor

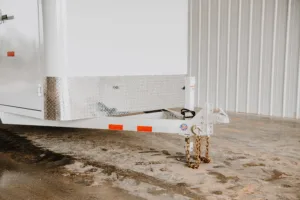

- Chain Tray in Tongue
Specifications
- Coupler: 2 5/16” Adjustable Coupler
- Jacks: 7000# Dropleg
- Safety Chains: 3/8”x39” w/Sliphook
- Tongue: 5” Channel

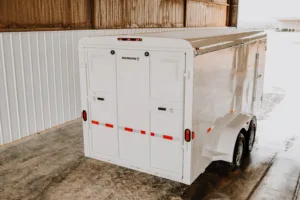

- Rear Door: Double Doors
- Cross Members: 2” x 2” x 3/16” Angle
- Flooring: 2×8 Pressure Treated Pine
- Axles: 2-5200# Brake
- Suspension: Torsion
- Tires: 225/15 ST Load Range D Radial
- Wheels: 15” 6 on 5 1/2” Silver Mod
- Fenders: 10.25”x96” Teardrop
- Lights: All Sealed LED Stop, Tail, Turn and Clearance
- Finish: Phosphate etched, primed, 2 coats acrylic enamel
*Weights are estimated
Models
| C6.8×14-104 | 6.8’ W x 14’ L All Steel Cargo, 2-5200# Axles, ST225/75R15C 6 Hole |
| C6.8×16-104 | 6.8’ W x 16’ L All Steel Cargo, 2-5200# Axles, ST225/75R15C 6 Hole |
|
C6.8×20-104 |
6.8’ W x 20’ L All Steel Cargo, 2-5200# Axles, ST225/75R15C 6 Hole |
| C7.10X16-104 | 7.10’ W x 16’ L All Steel Cargo, 2-5200# Axles, ST225/75R15C 6 Hole |
| C7.10X20-104 | 7.10’ W x 20’ L All Steel Cargo, 2-5200# Axles, ST225/75R15C 6 Hole |
Options
SPARE TIRE / WHEEL
| 2256H | ST 225/15 LRD w/6 on 5 1/2” Silver Mod Spare Tire & Wheel |
| 2356H | ST235/16 LRE w/6 on 5 1/2” Silver Mod Spare Tire & Wheel |
UPGRADE TIRE / WHEEL
| 2356U | Upgrade to 235/16 LRE w/6 on 5 1/2” Single Tire and Wheel |
ADDITIONAL OPTIONS
| CLEDD | LED Dome Light |

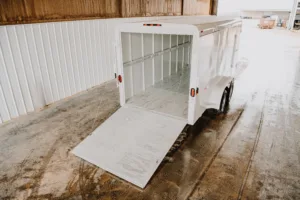

| CRR | Full Drop Ramp on Rear with Cable Spring Assist |
| C7T | 7’ Tall Inside (Per Foot) |
| C75T | 7.5’ Tall Inside (Per Foot) |
| C8T | 8’ Tall Inside (Per Foot) |
| CEAD | Extra Access Door |
| C48AD | 48” Wide Double Access Door |
| CVNOSE | V-Nose |
| CFBD | Fold Back Cargo Doors |
| CSJ | Stabilizer Jack, each |
| CLPLY | Sides Lined with Plywood, per Foot of Trailer |
| CRCV | Rollup Camper Vent |
| C2RV | Two Way Roof Vent |
